 HYDRAULIC PUMP - 10,000PSI
        for High Torque WrenchesHydraulic Torque wrench Pump



The 240V KLW-4000 & Air driven KLW-4000N series
Hydraulic Wrench Pumps.

These popular high torque wrench pumps are well proven in the Mining, Petrochemical, Power and Rail industries.

  • Fast Flow Rates with less weight for Pumps this size
  • Standard 4 Port with 8 Port available
  • Reliable continuous operation for all double acting torque wrenches.
  • Used by all major wrench manufacturers - preferred pump for wrenches.
  • Auto shift valve - easy to use
  • 4 Metre Remote Control for better access
  • Two options: 240 Volt over Hydraulic
                        Air over Hydraulic
                        Both pumps will run wrenches from 140 To 80,000 Ft Lbs

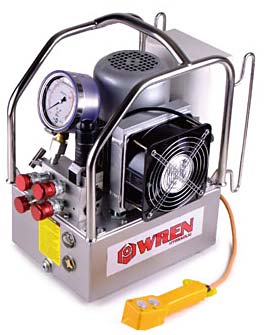

240 Volt High Torque Wrench Pumps -

10,000 PSI High Torque Pump
240Volt Hydraulic Torque wrench Pump Pump Model KLW-4000 Remote 6m
Flow Rate 8.4 Lit / Min Regulator 1,200 - 10,000
Power 220 - 240 Volt - 50 Hz DBA 70 dba at 10,000 psi
Shift Valve Advance Auto Return Hydraulic Oil Viscosity 46
Sump 8Lt Weight 29 kg without oil
Ports 4 Ports standard
(up to 8 Port available)
Roll Cage

Supplied Standard shown
(Heavy Duty - Optional )

Cooling Heat Exchanger
Pump
Max Hydraulic Pressure
700 Bar / 10.000 psi - Regulated internally @
10,000 psi Max
Shift Valve Advance 1,000 - 10,000 psi / Retract Auto 1,200 psi set - activated Via Remote

4" Gauge
4" Gauge
Remote Control
6m Remote
Regulator
Regulator
WREN sq drive torque wrenchThe Electric 240 Volt KLW-4000 High Torque Wrench pumps are fast, Light, Compact, Reliable, and supplied fully equipped ready to go. They're designed specifically for double acting Torque Wrenches. The KLW-4000 pumps will run tools from 200 to 50,000 Ft Lbs. The 240 Volt wrench pumps offer the perfect solution if air is not available. Over heating is solved with heat exchangers and are ideal for long haul production jobs .

The regulator / advance pressure Setting is fast. No more winding the regulator up and down. The pressure can be set accurately within 2 rotations from 1000 - 10,000 psi - ready to go.

The KLW-4000 is quiet, faster and more responsive than older pumps. The 3 stage Hydraulic Pump means when the wrench is unloaded during retract or pre-torque, the flow increases speeding up the low pressure cycle. This is most evident on larger high torque IBT 5, 8, and above with larger piston sizes.

The Remote is 4 metres long, 2 button. Top button starts and stops the pump. The second button advances the wrench when pressed. When released it auto retracts the wrench.

These pumps offer the perfect balance of speed power and size. Their smaller size make them easier to carry onto platforms or into cavities. Shipping containers are also available - fits pump + tool.
Oil Cooler
Oil Cooler
4 ports
4 Port Couplers
Oil Level sight Glass
Oil Level Gauge
Download Hydraulic Pump Flyer  Download WREN Hydraulic Pump Manual

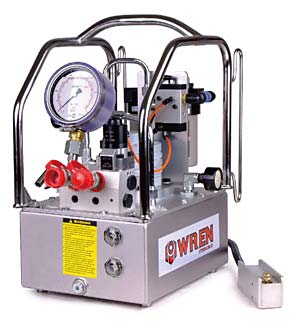

Pneumatic (Air) Driven Wrench Pumps -

10,000 PSI High Torque Pump
Air driven Hydraulic Pump Pump Model KLW-4000N Hydraulic Oil Viscosity 46
Flow Rate 7 Lit / Min Roll Cage Supplied as shown
( Heavy Duty - Optional )
Air Flow Requirement 4-6 Bar / 60 - 100 PSI @ 25 - 35 CFM Air Lubro / Water Trap Supplied standard 3/8 nsp inlet
DBA 70 dba at 10,000 psi Remote 6m
Shift Valve Advance Auto Return Weight 21 kg + oil
Sump 9 Lit Regulator 1,500 10,000
Ports 2 Ports standard
(4 port if required)
Max Hydraulic Pressure 700 Bar / 10.000 psi - Regulated internally @ 10,000 psi Max
Cooler Internal -Imput Air circulated through sump via heat exchanger Pump
Shift Valve
Via Remote - Advance 1000 - 10,000 psi / Retract Auto 1,200 psi set

4" Gauge
4" PSI Gauge
Remote Control
6m Remote
RegulatorRegulator

WREN sq drive torque wrench The KLW-4000N Air Driven High Torque Wrench pumps are fast, Light, Compact, Reliable, and supplied fully equipped ready to go. They're designed to operate using lower air flow and pressure The KLW-4000N pumps will run tools from 200 to 50,000 Ft Lbs. The air driven pumps are the perfect solution if electricity is not available or not safe to use. Over heating is solved by the incoming air and are ideal for long haul production jobs.

Setting The Regulator / advance Pressure is fast. No more winding the regulator up and down. The pressure can be set accurately within 2 rotations from 1000 - 10,000 psi and your ready to go.

The KLW-4000N is quiet, faster and more responsive than older pumps. The 3 stage Hydraulic Pump means when the wrench is unloaded (during retract or pre torque) the flow increases speeding up the low pressure cycle. This is particularly evident on high torque IBT-10 and above with larger piston sizes.

The Remote is 4 metres long, 2 button. Top button starts and stops the pump. The second button advances the wrench when pressed. When released it auto retracts the Hydraulic Torque Wrench.

These pumps offer the perfect balance of speed power and size. Their smaller size make them easier to carry onto platforms or into cavities. Shipping containers will fit Pump + tool are available.

Air filter lubro
Air Lubro / Dryer
4 ports
4 Port Couplers
Oil Level sight Glass
Oil Level Gauge



High Torque Pump - Hose Sets

twinline hydraulic hose set
All High Torque hoses are rated at Minimum 4:1 ( 10,000 psi working 40,000psi burst ) This should be a standard requirement for any double acting pump system. Hoses are supplied with standard 1/4" screw couplers and fittings. Hoses are assembled, bleed, tested and Hydraulic test tagged. All hoses are marked " High Torque" hose to avoid confusion and part numbered.
Description High Torque Hose set
Type 1/4" Twin Line - Steel Braid
Rated 4:1 10,000 Working Pressure
Couplers

1/4" Screw Ball connect
( 2 female + 2 Male ) Supplied

Hose Guards Supplied
Hydraulic Test Tag Supplied
Lengths 1m, 2m, 3m, 4m, 5m, 7m, 10m, 15m
Colour Yellow
Weight 4.7 kg - 5m Hose
Contact Us

Shipping Containers for both 240Volt or Pneumatic (Air) Hydraulic Pumps

hYDRAULIC pUMP SHIPPING CONTAINERPlastic Shipping Container

Protect your Hydraulic Pump Investment

Pumps fit within both our Shipping Containers along with the Hose, Torque Wrench, Torque Chart and sockets.

Reliable, Fast, & proven in the field, offering maximum versatility. 240 Volt or Pneumatic Hydraulic Pumps Power Packs come with Pressure Gauge, Regulator, Couplers & Oil, 3m Remote Control. Ready to go.

2 port & 4 port -These Torque Wrench Pumps are specifically set up to run Hex Cassette Hydraulic Spanner and Hydraulic Square Drive Torque Wrenches. The Electric 240 Volt Driven High Torque Wrench pumps are fast, Light, Compact, Reliable, and supplied fully equipped ready to go.
