Product Sales



Impact Sockets

Square Drives


3/4”,  1”,  1-1/2”  and  2-1/2”
Impact Sockets

See Also:


3/4" Sq Dr Socket Sets
1" Sq Dr Socket Sets

DownloaThis Months Specials:
Socket Specials PDF

Standard & Deep Sockets


6 Point & 12 Point

Sizes


1/2” to 6-7/8” (Imperial)
12mm to 150mm (Metric)


High quality imperial and metric impact sockets. Impact sockets are designed to be used with pneumatic, hydraulic, electrical torque wrenches and air nut runners and all high torque tool applications. Impact Sockets have an optimum wall thickness for strength and durability. Sockets made from high strength alloy steel, heat treated for the combination of strength & impact resistance. All sockets are plated & black oxidize coated.


HIRE & SALE of Individual Impact Sockets - 6 POINT HEX - Metric & Imperial

Impact 6 Point
6 Point Impact Sockets

IMPACT SOCKETS 6 POINT - STANDARD REACH -
AF HEX SIZES: 19mm to 210mm Metric   :   3/4" to 8" AF Imperial   ( AF = Across Flats)

SQUARE DRIVE SIZES : 1/2"   :   3/4"   :    1"   :    1-1/2"   :     2-1/2"
SUITABLE FOR: Impact Tools, Multipliers, Pneumatic Nut Runners and Hydraulic Torque Wrenches.

PDF Sets Catalogue 1/2" & 3/4" Drive Impact Sockets 6 Point Metric & Imperial Standard

6 Point impact sockets or female hex are the Industry standard configuration socket. The length is designed to drive a normal sized nut with a small amount of excess thread. The drive or input side is female square drive. As the socket size increases, Sq Drive size increase to accommodate additional torque. All sockets offer relieved corners and pin-hole retainer options. Socket sizes are engraved for easy identification.

Individual IMPACT SOCKETS - DEEP LONG REACH - 6 Point Hex

Impact Deep Reach
6 Point Deep Impact

IMPACT SOCKET 6 POINT - DEEP / LONG- Deep Reach Impact Sockets offer additional depth or length to suit more specialized applications. Long Impact sockets provide more depth in both the hex and hollow of the socket. Deep Impact Sockets are used where longer bolt thread prevents standard impact sockets fully engaging the nut.

SUITABLE FOR: Impact Tools, Torque Multipliers, Pneumatic Nut Runners and High Torque Hydraulic wrenches.

SQUARE DRIVE SIZES : 3/4"  -  1"  -   1-1/2"

A/F HEX SIZES: 20 - 125mm ( 3/4" to 4-3/4" a/f ) Across Flats - Metric & Imperial

1/2" & 3/4 Drive Impact Sockets PDF Catalogue 6 Point Metric / Imperial ( Standard & Deep Reach )
Custom 1" Drive Set Impact Sockets PDF 6 Point, Metric and Imperial ( Std & Deep )

Individual IMPACT IN-HEX DRIVERS

inhex
In Hex Impact

IN HEX IMPACT SOCKETS - HEX DRIVERS - for driving Socket Head Cap Screws.
The Inhex Impact drivers are perfect high tensile Unbrako socket head cap screws. Available in Metric and Imperial.

With larger size hex key applications we suggest High Torque Hex Cassette tools to reduce side loading at high torques.

SUITABLE FOR ALL - Impact Tools, Multipliers, Pneumatic Nut Runners & High Torques.
SQUARE DRIVE SIZES : 1/2"  -  3/4"  -  1"  -  1-1/2"

A/F HEX SIZES: 15 to 55mm ( 5/8 to 2-3/16" ) Male Hex- Metric & Imperial


Available in a Set Case


We only recommend true Impact Sockets for High Torque applications (9001/2000 Australian approved).


Torque Sockets come in 6 & 12 Point, standard and deep, up to 8" a/f.     Square Drives from 3/4" up to 2-1/2" Used on Hydraulic Torque Tools, Torque Multipliers, Air Nut Runners, RAD tools and all High Torque Applications. Impact Socket Accessories include Extension Bars, Reducers, Adaptors and Uni Joints

Individual IMPACT ADAPTERS / REDUCERS

impact reducer1/2 to 3/4
Reducer / Adapter
Available in
a Set Case

Impact Reducers provide male female square drive combinations . We carry stock of Square drive step up adaptors across 3 warehouses Australia wide. From 1/2 to 2-1/2" drive.

Impact Reducers now available in many new combinations.
Example:   1" Female to 1-1/2" Male
               1-1/2" Female to 1" Male

REDUCERS - SQUARE DRIVE IMPACT - Top Hat

reducer top hat
Reducers - Sq Drive Top Hat -
Available in
a Set Case

IMPACT REDUCER INSERTS - For reducing the square drive down on Impact Sockets. Has a magnetic base to retain insert.

SUITABLE FOR: Impact Tools, Torque Multipliers, Pneumatic Nut Runners and High Torques.

1/2" Fem to 3/4" Male    -   3/4" Fem to 1" Male   -  1" Fem to 1-1/2" Male

REDUCERS - HEX IMPACT

Reducer Hex Impact
Reducers Hex - Impact



See More - Torque Hex Cassette Wrench

HEX INSERTS / REDUCERS

These Hex Inserts can be used inside sockets or High Torque Ring Spanner / Hex Link Cassette Hydraulic Torque Wrenches

IMPACT UNIVERSAL JOINTS

impact Uni Joint
Universal Joint Impact -



UNI JOINTS Available in 1/2, 1" & 1-1/2" drive.
Best suited for impact wrenches. Impact Uni Joints are for applications where access is limited. Perfect for transmitting power on angles into corners and recesses to loosen and tighten bolts. Impact Flexible drives are designed tough to withstand Impact guns in heavy industrial environments.

Available in a
Set Case
Come in 3/4" : 1" : 1-1/2"   Square Drive Impact Universal Joint

HEX ALLEN KEY - HIGH TENSILE

Hex Allen Key
Hex Allen Key

Hex Key High Tensile - Allen

HEX KEY We specialize in hire and supply of Hex key from 16mm up to 48mm to suit socket head cap screws and hex bolts. Hex key can be driven via Impact Sockets or by Hex Cassette Tools. In the larger hex key sizes we find driving them with a High Torque Hex Cassette tool works best to help stabilize side loading.

EXTENSION IMPACT

Impact Sockets

Impact Extensions

IMPACT EXTENSIONS -The Impact Extensions are available in several length options and square drive sizes. Designed to help access those hard to get to places.

Square Drive Sizes: 1/2,  3/4"  1" & 1-1/2"

SUITABLE FOR: Impact Tools, Torque Multipliers and Pneumatic Nut Runners.
                       Not suitable for use on Hydraulic Torque wrenches.



SLOGGING SPANNERS

Impact Sockets
Slogging Spanners



SLOGGING WRENCHES - FLOGGING SPANNERS

Ideal as back up wrenches or as a slugger. Imperial & Metric. Specializing in Larger sizes.

IMPACT HEX ALLEN KEY DRIVERS

impact Insert 27 to 65mm
Impact Hex Key Drivers

IMPACT ALLEN KEY DRIVERS: Female drivers or reducers are available for driving hex allen key. These drivers if used in Hydraulic Hex Cassette Tools(Ring Spanner) reduce side loading. When the allen key is worn or rounding simply cut off and push through more key. Hex Key sizes 22, 27, 32 & 38mm

RETAINING RINGS

retaining rings
Retaining Rings

RETAINING RINGS:

Retaining Rings offer a safe secure option to ensure the Impact Sockets is secured. Replaces the need for using welding wire and ties that can cause finger cuts and other injuries.


IMPACT T BAR WRENCHES

Breaker T Bar Impact IMPACT SLIDING "T" HANDLE:
3/4",  1"   &   1-1/2" Sq Drives

IMPACT SOCKET SETS

Impact Set 3/4" std
10pc Impact Socket Set

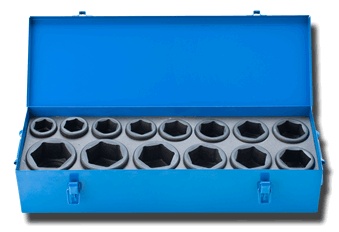

1" socket set impact for torque wrench
1" Custom Impact Socket Set
Hex driver set for Nut runners
In Hex Driver Impact Sets



3/4”,  1”,  1-1/2”  and  2-1/2” Square Drive Impact Sockets are critical in running maintenance smoothly. When Impact Sockets are holding up maintenance avoid compromise - use only High Torque Impact Sockets for all types of torque tooling . The Deep / Long Impact Socket offers additional length to pass over extended thread. From 3/4" up to 7" AF ( across flats ).
Sockets for Impact Guns, Pneumatic Nut Runners. Torque Multipliers and Hydraulic Torque Wrenches (Hydraulic Spanners) and all high torque tool applications.

Large Impact sockets are our specialty. We now carry big impact sockets in almost every size, for the range of powerful torque tools with over 10,000 Ft Lbs in 1-1/2 and 2-1/2" square drives.
